EPIC CASING 70mm · 2.75″ Coupling

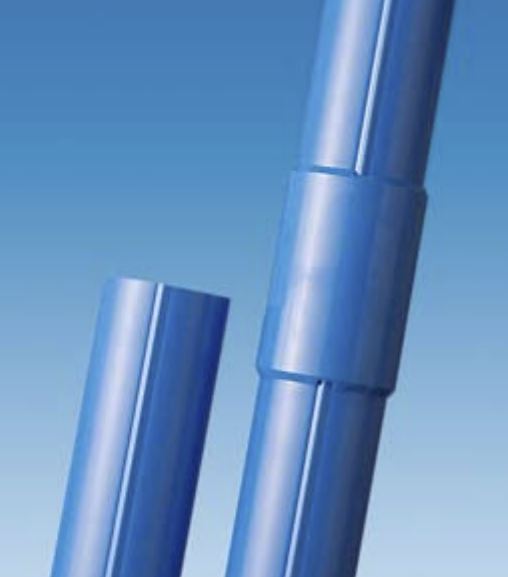

EPIC CASING
EPIC casing is an economical casing that can be
cut and coupled at any point along its length.
Grooves: Grooves are formed during extrusion
and are less precise than broached grooves.
Sealing: Solvent cement, mastic, and tape.
Coupling: Oversize couplings make very strong
joints.
Assembly: Casing and couplings are glued
together with ABS solvent cement. The joint
must then be sealed with mastic and tape.
Best for: General use. Some care must be taken
to seal the coupling.
EPIC Casing 70mm · 2.75" Only
Coupling OD: 78 mm, 3.07 inches.
Casing OD: 70 mm, 2.75 inches.
Casing ID: 60 mm, 2.32 inches.
Collapse Rating: 15 bar, 220 psi.
Load Rating: 320 kg, 700 lb.
Temp rating: -29 to 88 ºC, -20 to 190 ºF.
Spiral:  0.5º per 3m or 10' section.
